UWB (Ultra-Wideband) ranging module is an advanced wireless communication technology, which has been widely used in various fields for its high precision, low power consumption and anti-interference characteristics. This paper will introduce the definition, working principle and application scenario of UWB rangefinder module in depth to help readers better understand and apply this technology.

Chapter 1: UWB ranging module overview

1.1 Definition and classification of UWB ranging module

UWB ranging module is a device that uses continuous or discrete UWB signals for ranging. According to different application requirements, UWB ranging modules can be divided into active and passive two categories. The active UWB ranging module measures distance by sending continuous UWB signals and receiving reflected signals; The passive UWB ranging module implements the ranging function by receiving ultra-wideband signals sent by other devices in the environment.

1.2 Main features and advantages of UWB ranging module

The UWB ranging module has the following features and advantages:

- High accuracy: The UWB ranging module can achieve sub-centimeter ranging accuracy, suitable for applications with high distance requirements.

- Broadband signal: The UWB ranging module uses signals with broadband characteristics, with strong through-wall and transmission capabilities, and can achieve stable ranging functions in complex environments.

- Low power consumption: The UWB ranging module is designed with low power consumption, which extends the service life of the device and is suitable for battery powered scenarios.

- Strong anti-interference ability: the frequency and time characteristics of the UWB ranging module in the transmission process make it have a strong anti-interference ability, suitable for applications in complex electromagnetic environments.

Chapter two: the working principle of UWB ranging module

2.1 Introduction of UWB ranging principle

The working principle of the UWB ranging module is based on UWB technology by sending a series of fluctuating ultra-short pulse signals and calculating the distance by measuring the propagation time of the signal. The principle is to use the relationship between the time and distance required for the signal to propagate in space during the transmission process, and obtain the distance information by calculating the propagation time difference.

2.2 Hardware composition of UWB ranging module

The hardware of UWB ranging module is mainly composed of transmitter and receiver. The transmitter transmits the ultra-wideband signal, while the receiver receives and processes the reflected signal. The signal is transmitted between the transmitter and the receiver through an antenna or a transmission line to further complete the ranging operation.

2.3 Signal processing flow of UWB ranging module

The signal processing flow of UWB ranging module includes the key steps of signal transmission, reception, reflection signal processing and distance calculation. In the signal transmission process, the transmitter generates an ultra-wideband signal and transmits it through an antenna or transmission line. The receiver receives the reflected signal and amplifies, filters and samples it. The distance information can then be calculated by comparing the time difference between the received reflected signal and the transmitted signal. Further application processing or display based on distance information.

Chapter three: The application scenario of UWB ranging module

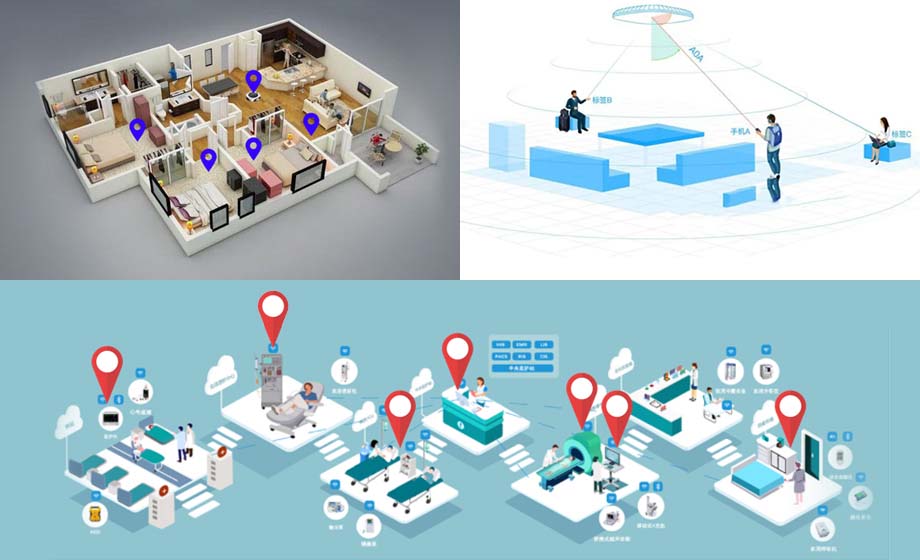

3.1 Indoor Positioning and navigation

UWB ranging module is widely used in indoor positioning and navigation fields. By placing UWB nodes inside buildings, it is possible to locate and track people and items with high precision. This has great potential in hospitals, shopping malls, warehouses and other places, which can improve the efficiency of safety management, logistics tracking and other aspects.

3.2 Intelligent transportation system

In intelligent transportation systems, UWB ranging modules can be used for distance measurement and collision warning between vehicles and pedestrians. Through the application of UWB ranging module, vehicles can achieve more accurate control of following distance, and the safe distance between pedestrians and vehicles can also be effectively monitored, improving the safety and efficiency of traffic.

3.3 Industrial Automation

UWB ranging module is widely used in industrial automation field. For example, in logistics warehousing management, the UWB ranging module can be used to locate and track the goods, improving the efficiency and accuracy of warehouse management. In addition, the UWB ranging module can also be applied to automated equipment such as robot navigation and unmanned vehicles to provide accurate location information and environmental awareness.

3.4 Internet of Things applications

With the development of the Internet of Things, UWB ranging module has also been widely used in iot devices. For example, positioning and tracking in smart homes, human movement measurement in health monitoring devices, etc., can be achieved with the UWB ranging module. In addition, the UWB ranging module can also be used for indoor navigation, wireless payment and other aspects, providing more functions and convenience for Internet of Things applications.

3.5 Virtual reality and augmented reality

In the field of virtual reality (VR) and augmented reality (AR), the UWB ranging module enables accurate identification of the user's position and posture. By embedding UWB ranging module in the head-mounted device, it can provide more accurate user head positioning information, enhance the sense of immersion and realism of the virtual environment, and improve the user experience.

Chapter four: the market prospect and development trend of UWB ranging module

4.1 Analysis of UWB ranging market status

At present, UWB ranging technology has been widely used in some specific fields, such as indoor positioning, vehicle safety, logistics management and so on. As a key component, the UWB ranging module has also received high attention and demand in the market.

4.2 Application prospect of UWB ranging module

With the rapid development of the Internet of Things, intelligent manufacturing, autonomous driving and other fields, the demand for high-precision, low-power ranging modules is also increasing. With its unique characteristics and advantages, UWB ranging module is expected to be widely used in more application scenarios. For example, in the construction of smart cities, UWB ranging modules can be used in urban traffic management, intelligent parking systems, etc., to improve the efficiency and safety of urban traffic. In addition, the application trend of UWB ranging modules can also be seen in smart home, smart medical, smart agriculture and other fields.

4.3 Technical development trend of UWB ranging module

With the continuous advancement of technology, the UWB ranging module is also continuously optimized and evolved. Future development trends include the following aspects:

- Higher ranging accuracy: The ranging accuracy and stability of the UWB ranging module are continuously improved by improving the algorithm and improving the signal processing capability.

- Lower power consumption: With the increasing awareness of energy conservation and environmental protection, the UWB ranging module will be developed in the direction of low power consumption to extend the service life of the equipment and save energy.

- Enhanced anti-jamming capability: Considering the increasingly complex wireless environment, the UWB ranging module will further improve the anti-jamming capability to ensure reliable ranging performance.

- Integrated and multi-functional: With the advancement of chip technology, UWB ranging modules will become more and more compact and integrated, and have more functions, such as attitude recognition, environment awareness, etc.

- Price decline: With the intensification of market competition, the price of UWB ranging modules will gradually decrease and become more popular and acceptable.

Chapter 5: UWB ranging module deployment and configuration guide

5.1 Selection and purchase suggestions of UWB ranging module

Before deploying the UWB ranging module, selection needs to be made according to the specific application requirements. Considering the ranging accuracy, communication distance, power consumption and other factors, the appropriate UWB ranging module is selected. When purchasing, you can refer to the manufacturer's product manual, performance indicators and user evaluation to evaluate.

5.2 UWB ranging module installation and debugging skills

When installing the UWB ranging module, arrange the installation based on the actual scenario. Take into account the signal propagation, avoid interference and other factors, select the appropriate location to install the antenna and module equipment. During the debugging process, you can configure and test parameters according to the operation manual or software tools provided by the manufacturer to ensure the normal operation of the module.

5.3 Data processing and analysis method of UWB ranging module

The data obtained by the UWB ranging module can be further applied by various data processing and analysis methods. For example, the data algorithm can be used to filter and smooth the ranging data to improve the reliability of the data. It can also extract useful information through data analysis and statistical methods to achieve scene positioning, motion tracking and other functions.

Chapter 6: Comparison between UWB ranging module and other ranging technologies

6.1 Comparison between UWB ranging module and Bluetooth ranging technology

UWB ranging module and Bluetooth ranging technology have certain applications in ranging. However, compared to Bluetooth ranging technology, UWB ranging module has higher accuracy and wider ranging range. Because the UWB signal has a larger bandwidth and shorter pulse width, it is able to provide higher temporal resolution, which enables sub-centimeter ranging accuracy. Bluetooth ranging technology usually only provides meter-level ranging accuracy.

In addition, the UWB ranging module also has advantages in terms of anti-interference capability. Due to the wide spectrum coverage of UWB signals, it is relatively less susceptible to interference from other wireless devices. Due to the limitation of the frequency band, Bluetooth ranging technology can be more susceptible to interference from other wireless devices.

However, compared to Bluetooth, the UWB ranging module has a relatively high power consumption, because UWB needs to send a more broadband signal. Therefore, in some application scenarios with strict requirements for power consumption, Bluetooth ranging technology may be more suitable for use.

All in all, the UWB ranging module has advantages in terms of accuracy, ranging range and anti-interference ability, while the Bluetooth ranging technology is relatively lower in terms of power consumption. The selection of suitable ranging technology requires comprehensive consideration of the requirements and limitations of specific application scenarios.
